Special sensors

We supply also special sensors, which can be modified, adapted and calibrated for customized problem solution. For example to the distinction of different metals e.g. Fe ( fer.), Fe (aust.), Cu, Al, Ni, Ag, Pb, Sn etc., for detecting of impact welded joints of different or same materials. For the automatic assortment/orientation of group metals and metal/ nonmetals, as well as for the positions - monitoring of workpieces and parts. The sensors work e.g. magnetically, inductively or by eddy current. Accompanying illustrations show a few examples.

Please inquire for more information   and/or send   us  your problem definition.

Application examples:
Sensors for...

...monitoring of metal parts in a blister pack



...for determination/discrimination of the active/ passive side on thermobimetal parts


...for detection  welded lap/seam on a steel strip


...for detection/ positioning of a invisible flanged seam on a plastic coated steel tube


...for checking scalpels , sealed in steril aluminium foil


...for checking electrical contact parts


..for checking a metal composite gasket for completeness of the parts in the automotive industry


...for checking of an oil cooler  in the automotive industry. Sensor A tests whether the turbulence metal part C is present in the flat aluminium profile tube B


...for double part detection in the semiconductor manufacturing industry


...for controlling the separation of clutch lamellas in the automotive industry


...on autom. assembly lines for batteries / accumulators


...double metal part detection with a singlesided sensor from the metal part edge


.also for your application.
Please contact us !

Fig.1.1 NEW! Digital Material Discrimination- Sensor

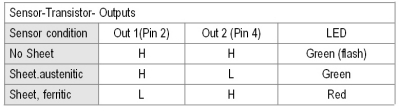

This sensor can discriminate materials from different electrical conductivity. For example steel (ferrous- magnetic, non-magnetic, stainless) from non-ferrous material like copper, aluminium, brass etc. All parts are integrated in the sensor. 2 outputs switches according to the table below. The sensor is teach-in programmable with the relevant material during sensor installation or also later, everytime if necessary.
Fig.1.0 Sensor Controller (Examples)

spezialsen/ms01sv.jpg (10820 Byte)

Fig.1.1. 3- Chanel Sensor Controller


Fig.1.2. Sensor- Controller in a 19" rack



Fig.2 Sensors (Examples)
